Case Studies
Case Study 1
Mastering Complexity with Our CNC Machining Expertise:

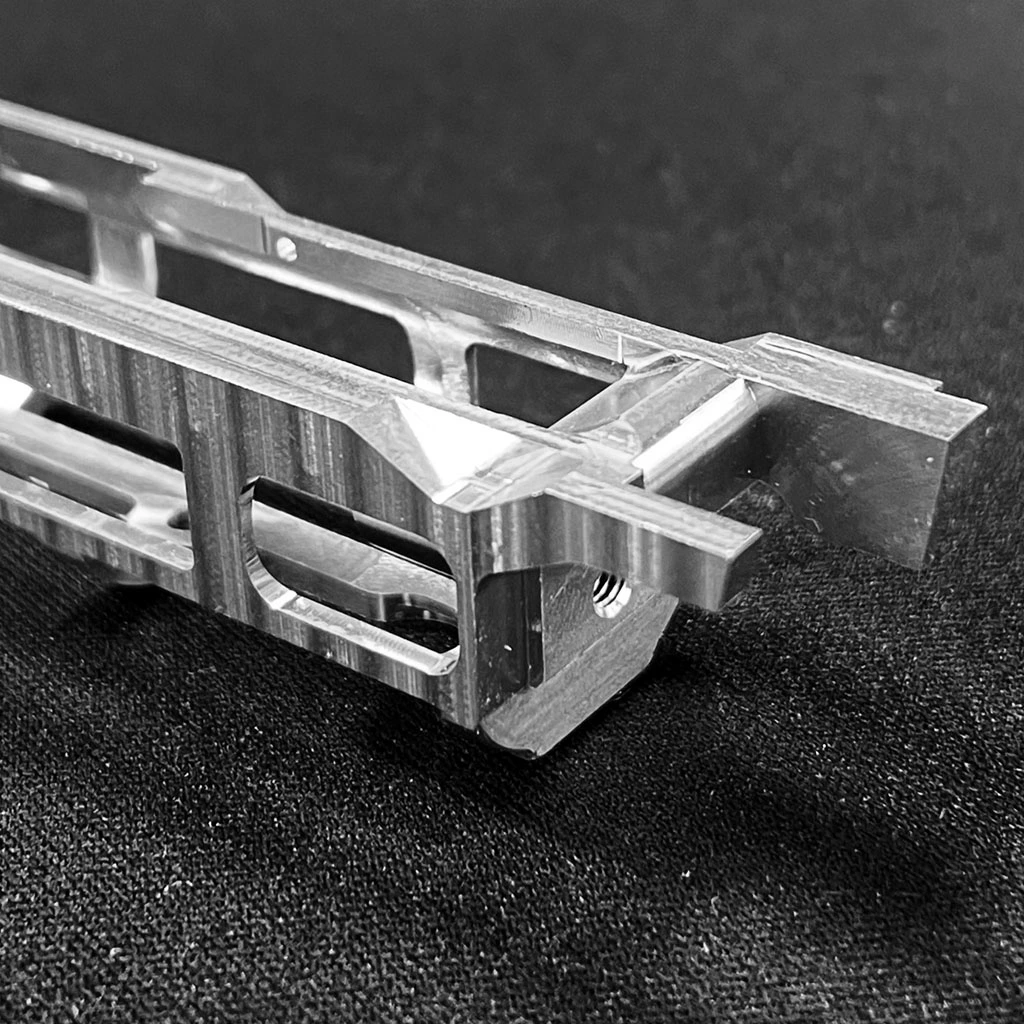

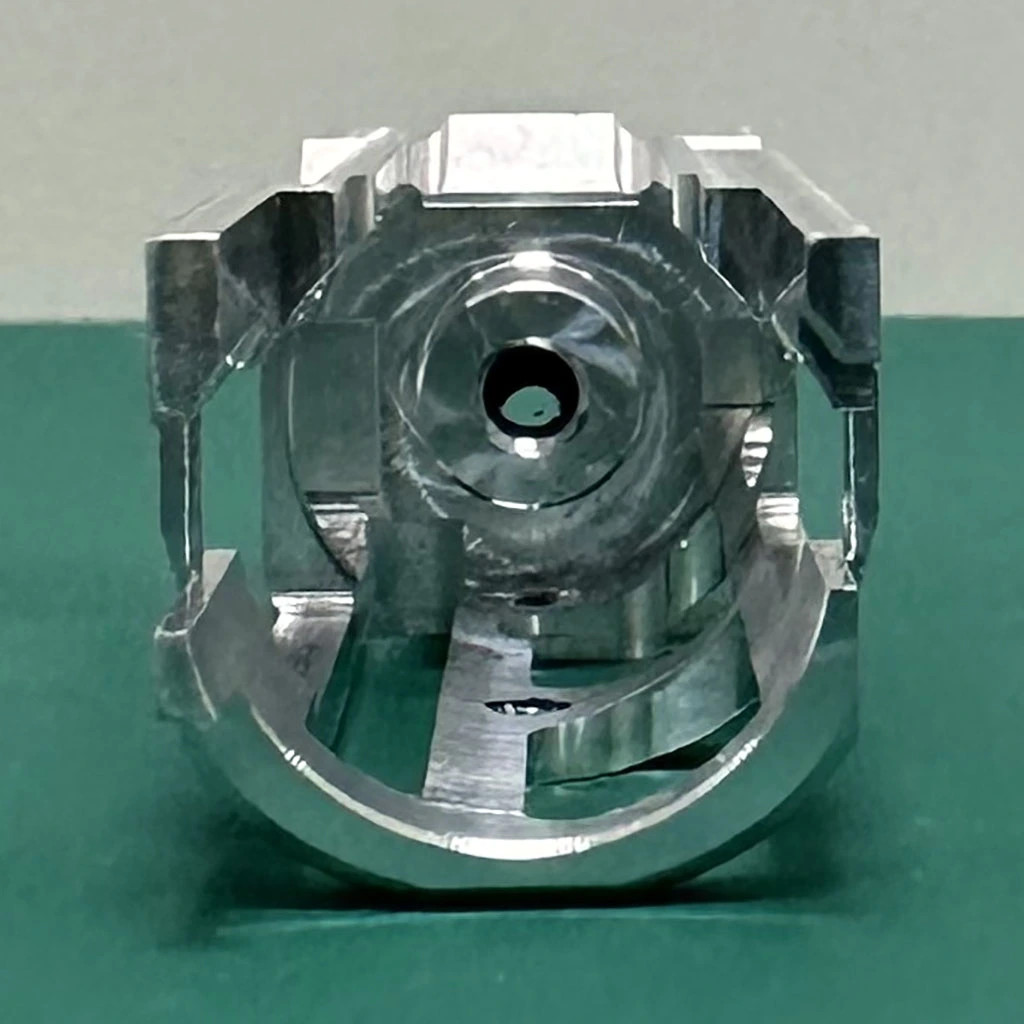

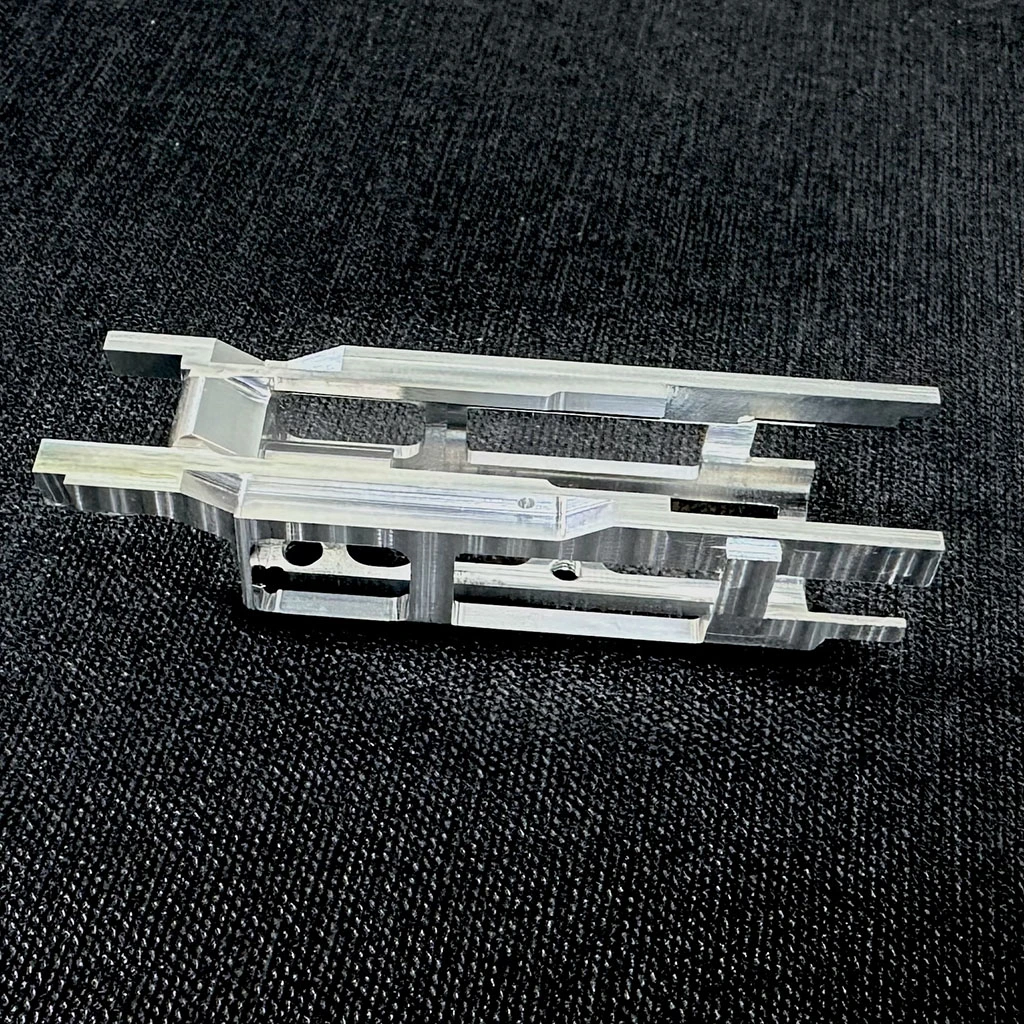

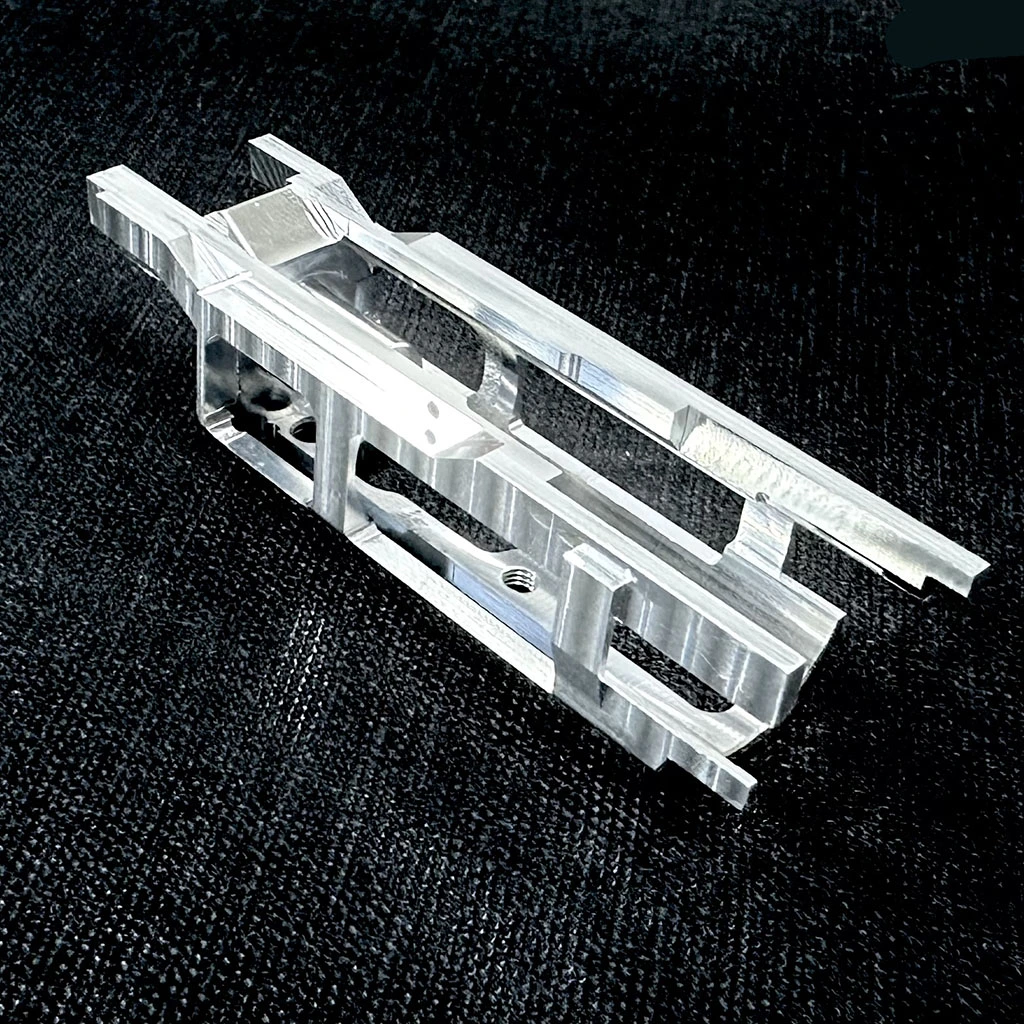

4-Axis CNC Simultaneous Machining with Fully Engraved Parts
Workpiece Alignment vs. Fixture & Machine Coordinates
To ensure repeatability and consistency, the play between the workpiece and the fixture must be prevented. The fit between the fixture and the workpiece is precisely controlled within a tolerance of 0.01mm.
Advanced CNC Software
We invested in high-tech software capable of adapting to 5-axis CNC machining, enhancing our ability to handle intricate and precise machining tasks with greater efficiency and accuracy.
Strict dimension tolerance
.X +/-.3
.XX +/-.15
.XXX +/-.05
7075 Aluminum Machining
Machining 7075 aluminum alloy presents significant challenges due to its high internal stress, making it prone to warping and deformation.
Deep Slot Machining
Machining a deep slot within the workpiece is highly challenging due to tool access limitations and the rigidity required of the cutting tool.
Precision Cutting Tool
We utilized a specialized cutting tool with dimensions of 4mm x 55mm for hole drilling, ensuring precise cuts and maintaining the material's integrity.
360-Degree Machining Fixture
We created a specialized fixture that allows for comprehensive 360-degree CNC machining. This fixture enables access to all angles, ensuring uniformity and precision.
Custom Anti-Chatter Tool
We developed a unique cutting tool specifically designed to minimize chatter on the outer diameter, ensuring a smooth and accurate finish.
